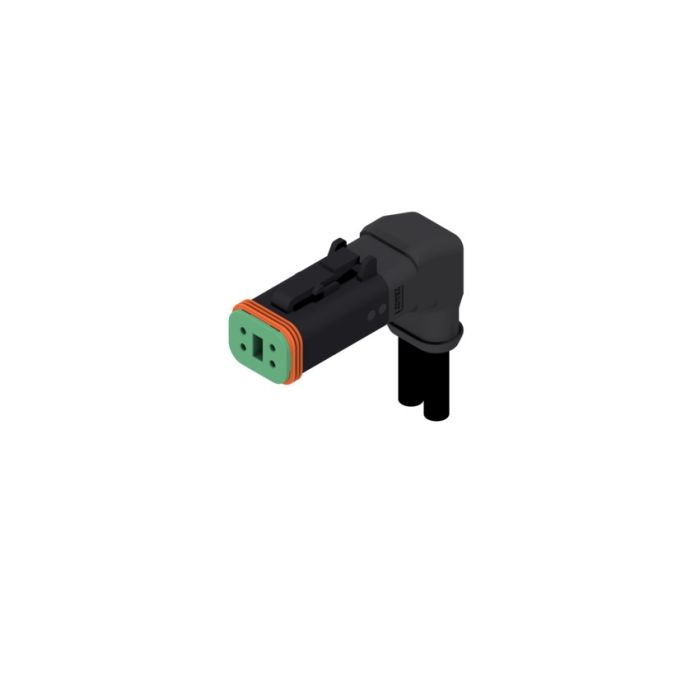

Part No: 55-01602
Product Description
- Deutsch DT
- Socket, 90° angled
- 4- pos.
- DT
- without protection circuit
- 1 m
| Type |
Deutsch DT |
| Style |
Double outlet |
| Size/Number of positions |
4- pos. |
| Size A-side |
DT |
| Contact type |
Socket, 90° angled |
| Length cable/wire |
1 m |
| Circuit |
without protection circuit |
| Cable quality [e.g. PP, PVC, TPE etc.] |
PUR |
| Mating cycles |
>=100 |
| Wire cross section |
2 x 2 x 0,75 mm² |
| Cable color |
Black |
| min. working temperature |
-40° C |
| max. working temperature |
+80° C |
| Working voltage signal |
48 V AC / 60 V DC |
| IP rating |
IP67/IP69K in mated condition |
| Current rating signal |
7 A at +40°C |
| Insulator material |
PA GF, UL 94 V-0 |
| Insulator color |
Black |
| Housing material |
TPU, UL94 |
| Housing color |
Black |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Nickel |
