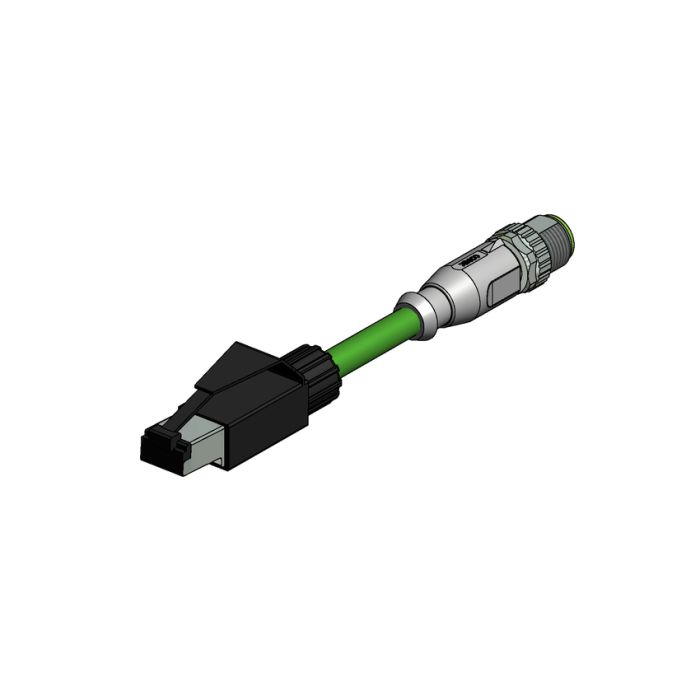

SAL-45-SS4-12D-RS4.2-3/G6
Part No: 43-10997
Product Description
- BUS Systems
- 4- pos.
- 3 m
- RJ45
- D-coded
- Overmoulded Connectors
- Male connector axial
- Industrial Ethernet
- Double ended
- Shielded
- 2x2xAWG22
- TPU shielded SFTP
| Design |
Double ended |
| Size A-side |
RJ45 |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
M12x1 |
| Type A-side [ Female, Male] |
Male connector axial |
| Type B-side [Female, male] |
Male connector axial |
| Length cable/wire |
3 m |
| IP range A-side |
IP20 |
| IP range B-side |
IP67 |
| Locking type |
Screwable |
| Style |
Overmoulded Connectors |
| Bus systems |
Industrial Ethernet |
| Configuration A-side |
axial |
| Configuration B-side |
axial |
| Shielding |
Shielded |
| Cable quality |
2YH(ST)C11Y |
| Wire cross section |
2x2xAWG22 |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP67 |
| Sealing material |
FPM |
| Cable quality [e.g. PP, PVC, TPE etc.] |
TPU shielded SFTP |
| Mating cycles |
>=100 |
| Recommended torque |
0,6 Nm |
| Insulation resistance |
>=100M Ohm |
| Cable color |
Green (RAL6018) |
| Insulator material |
PA, UL 94 |
| Insulator color |
Green (RAL6018) |
| Housing material |
TPU, UL94 |
| Housing color |
Grey |
| Coupling nut /-screw material |
Zinc die cast |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 61076-2-101 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 61076-2-101 |
| Standard temperature range |
IEC 60664-1 |
