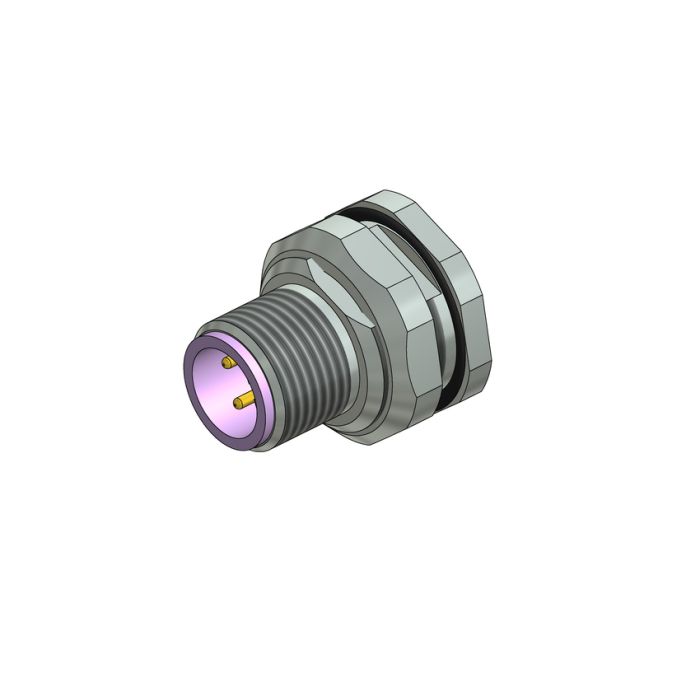

SAL-12B-FSH4-L
Part No: 43-02299
Product Description
- BUS Systems
- Sockets
- Male connector axial
- Profibus DP
- M12x1
- 4- pos.
- Back panel mounting
- Solder cup
- B-coded
- Shielded
| Size A-side |
M12x1 |
| Mounting options [e.g. front/back panel mounting etc.] |
Back panel mounting |
| Locking type |
Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Solder cup |
| Screw connection [e.g. PG9, M16 etc.] |
M16x1,5 |
| Style |
Sockets |
| Bus systems |
Profibus DP |
| Configuration A-side |
axial |
| Shielding |
Shielded |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP67 |
| Sealing material |
FPM |
| Mating cycles |
>=100 |
| Recommended torque |
0,6 Nm |
| Insulation resistance |
>=100M Ohm |
| Insulator material |
TPU GF, UL94 |
| Insulator color |
Violet |
| Housing material |
copper alloy |
| Housing color |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Sealing compound material |
Polyurethan-Harz, UL94 |
| Sealing compound material color |
Blue |
| Standard current rating |
IEC 61076-2-101 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 61076-2-101 |
| Standard temperature range |
IEC 60664-1 |
