Part No: 17-200731

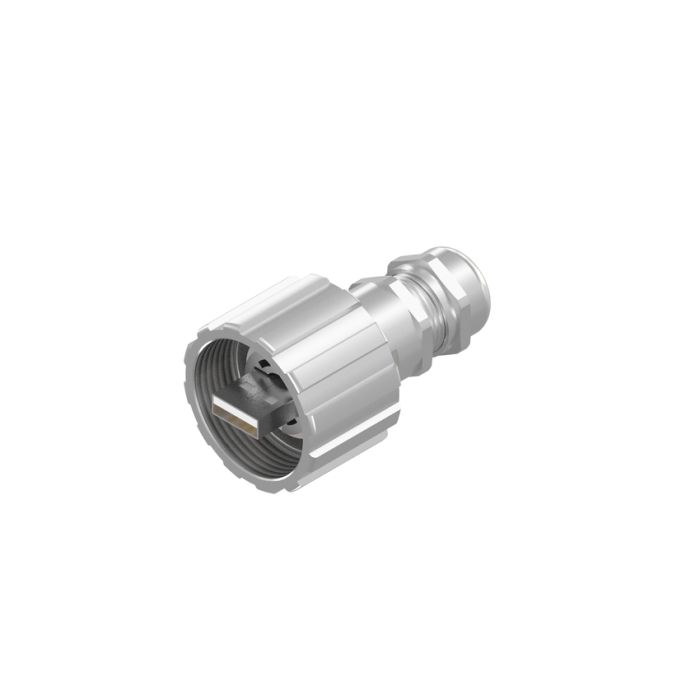

Product Description
- IP67 USB
- Cable connector
- Plastic metallized
| Contact type A-side |
Stecker |
| Style |
Cable connector |
| Performance |
USB 2.0 Type A ip to 480 MBit/s |
| Locking type |
M28 Thread |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
IDC |
| Shielding |
Shielded |
| Dielectric with standing voltage signal |
1000 V DC 60sec. |
| min. working temperature |
-40° C |
| max. working temperature |
+85° C |
| Contact resistance standard |
30 mOhm |
| Housing material A-side |
Plastic metallized |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Shell material |
Copper Alloy |
| Shell plating |
Nickel |
| Plating of housing |
Nickel |
| Coupling ring material |
PBT GF UL 94 V-0 |
| Plating of coupling ring |
Black |
| Cable fitting |
PBT GF UL 94 V-0 |
| Signal contact material |
Phosphor bronze |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
USB 2.0 |
| Standard dielectric voltage |
USB 2.0 |
| Standard working voltage |
USB 2.0 |
