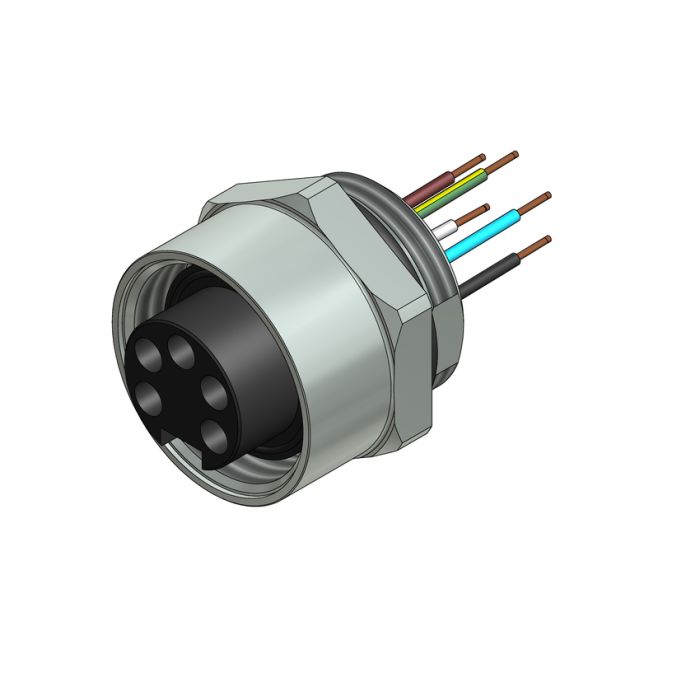

SAL-7/8-FK4-0,5/150
Part No: 41-40016
Product Description
- Sockets
- Female connector axial
- 7/8
- 4- pos.
- Front panel mounting
- Wire
- Unshielded
- AWG16
| Style |
Sockets |
| Size A-side |
7/8 |
| Length cable/wire |
0,5 m |
| Mounting options [e.g. front/back panel mounting etc.] |
Front panel mounting |
| Locking type |
Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Wire |
| Screw connection [e.g. PG9, M16 etc.] |
PG13,5 |
| Shielding |
Unshielded |
| Wire cross section |
AWG16 |
| min. working temperature |
-30° C [UL: -30° C] |
| max. working temperature |
+80° C [UL: +75° C] |
| Pollution degree |
3/2 |
| IP rating |
IP67 |
| Sealing material |
FPM |
| Mating cycles |
>=100 |
| Wire isolation material |
PVC |
| Insulation resistance |
>=100M Ohm |
| Insulator material |
TPU, UL94 |
| Insulator color |
Black |
| Housing material |
copper alloy |
| Housing color |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Sealing compound material |
PUR, UL94 |
| Sealing compound material color |
Black |
| Standard current rating |
IEC 60512-3 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 60664-1 |
| Standard temperature range |
IEC 60664-1 |
