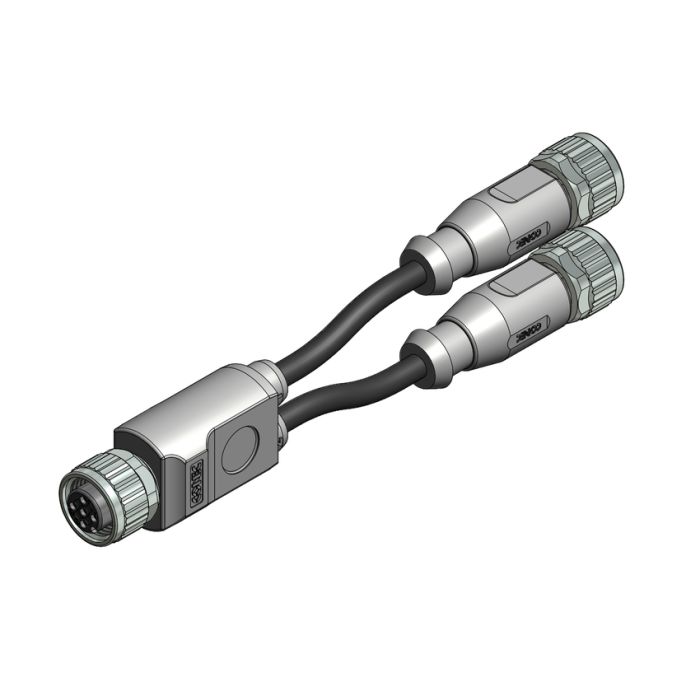

SAL-12-DK4-2RK3-0,6/0,6/K1
Part No: 43-17083
Product Description
- M12x1
- 2x Female connector M12x1 axial
- 4- pos.
| Size A-side |
M12x1 |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
M12x1 |
| Length cable/wire |
0,6 m |
| Installation size exit |
2x Female connector M12x1 axial |
| Pin configuration exit |
3-pos. |
| Locking type |
Screwable |
| Configuration A-side |
axial |
| Configuration B-side |
axial |
| Shielding |
Unshielded |
| Cable quality |
Li9Y11Y |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP67 |
| Sealing material |
FPM |
| Cable quality [e.g. PP, PVC, TPE etc.] |
TPU halogeenfree high flexible |
| Mating cycles |
>=100 |
| Recommended torque |
0,6 Nm |
| Insulation resistance |
>=100M Ohm |
| Cable color |
Black |
| Insulator material |
TPU GF, UL94 |
| Insulator color |
Black |
| Housing material |
TPU, UL94 |
| Housing color |
Grey |
| Coupling nut /-screw material |
Zinc die cast |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 61076-2-101 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 61076-2-101 |
| Standard temperature range |
IEC 60664-1 |
