Part No: 15-007633

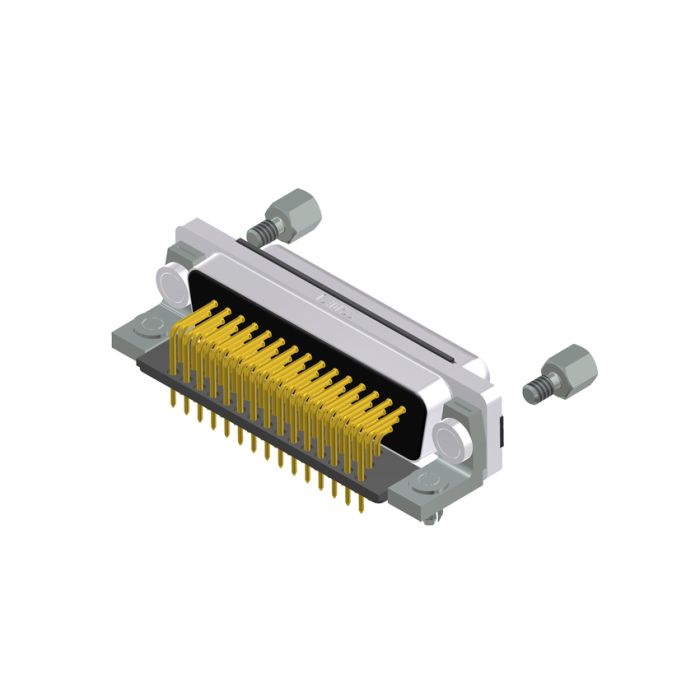

Product Description
- IP67 D-SUB High Density CONEC SlimCon
- 44-pos.
- Socket
- Solder pin angled
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Solder pin angled |
| Mounting style |
Angled |
| PCB fastening |
PCB-Clip 1,60mm |
| Thread type |
UNC 4-40 |
| Hardware options mating side |
Threaded insert |
| Dielectric with standing voltage signal |
1000 V |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| IP rating |
IP68 in mated condition |
| Insertion force |
120 N |
| Extraction force |
120 N |
| Contact resistance standard |
10 mOhm |
| min. working temperature |
-40° C |
| max. working temperature |
+105° C |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Signal contact material |
Copper alloy |
| Plating signal contact (termination area) |
Gold over nickel |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard mating cycles |
DIN41652 |
| Standard insertion / extraction force |
DIN41652 |
| Standard dielectric voltage |
IEC664-1 |
| Standard working voltage |
DIN41652 |
| Standard IP rating |
IEC 60529 |
