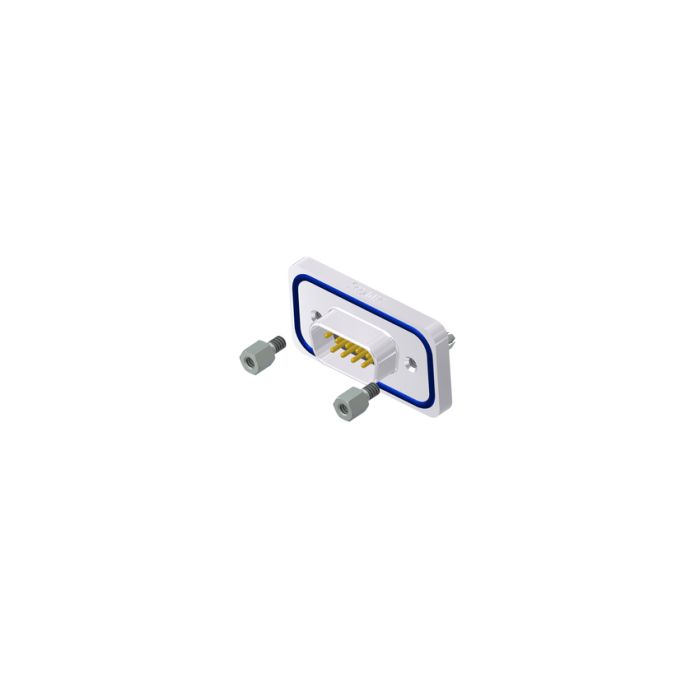

Part No: 15-000413
Product Description
- IP67 D-SUB Solid Body
- 9-pos.
- Plug
- Solder pin straight
| Product type |
IP67 D-SUB Solid Body |
| Contact type |
Plug |
| Size/Number of positions |
9-pos. |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Solder pin straight |
| Mounting style |
Straight |
| PCB fastening |
Threaded rear spacer with clip |
| Thread type |
UNC 4-40 |
| Hardware options mating side |
Threaded insert |
| Dielectric with standing voltage signal |
1000 V |
| Working voltage signal |
125 V |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| IP rating |
IP67 |
| Current rating signal |
7,5 A |
| Insertion force |
30 N |
| Extraction force |
30 N |
| Contact resistance standard |
10 mOhm |
| min. working temperature |
-25° C |
| max. working temperature |
+105° C |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Signal contact material |
Copper alloy |
| Plating signal contact (termination area) |
Tin plated |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard mating cycles |
DIN41652 |
| Standard insertion / extraction force |
DIN41652 |
| Standard dielectric voltage |
IEC664-1 |
| Standard working voltage |
DIN41652 |
| Standard IP rating |
IEC 60529 |
