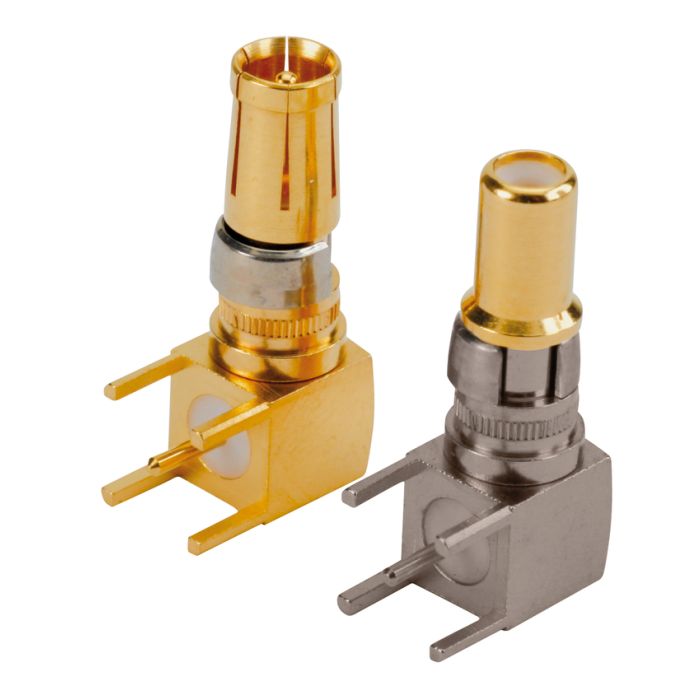

Part No: 131A25519X
Product Description
- Combination D-SUB contacts
- Plug
- 50 Ohm
- Solder pin angled 5pin
In stock
| Product type | Combination D-SUB contacts |
|---|---|
| Contact type | Plug |
| Termination coax contact | Solder pin angled 5pin |
| Dielectric with standing voltage coaxial | 750 V |
|---|---|
| min. working temperature | -55° C |
| Working voltage coaxial | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Impedance coax | 50 Ohm |
| Frequency range | 0- 2 Ghz |
| Insertion force | 7 N |
| Extraction force | 7 N |
| Coaxial resistance standard | 2,7 mOhm |
| Coaxial contact material conductor | Copper Alloy |
|---|---|
| Plating coaxial contact inner conductor | Gold over nickel |
| Coaxial contact inner conductor plating mating area | Gold over nickel |
| Coaxial contact outer conductor plating mating area | Gold over nickel |
| Coaxial contact outer conductor termiation area | Gold over nickel |
| Coaxial contact material insulator | PTFE |
| Standard mating cycles | IEC 60807-2 |
|---|---|
| Standard IP rating | IEC 60807-2 |
| Standard current rating | IEC 60807-2 |
| Standard insertion / extraction force | IEC 60807-2 |
| Standard dielectric voltage | IEC 60807-2 |
| Standard working voltage | IEC 60807-2 |
