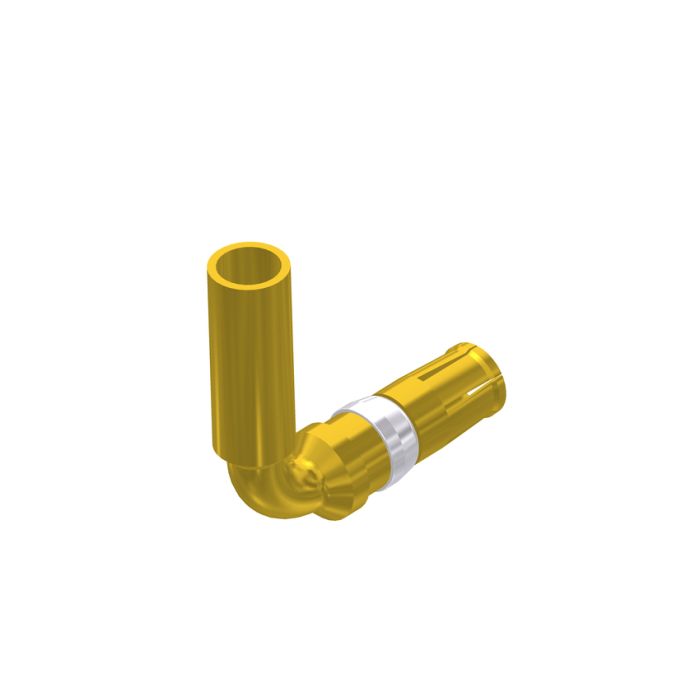

Part No: 132C16039X
Product Description
- Combination D-SUB contacts
- Socket
- Crimp angled
In stock
| Termination power contact | Crimp angled |
|---|
| Dielectric with standing voltage power | 1000 V |
|---|---|
| min. working temperature | -55° C |
| Power contact cross section | AWG 10- 12 |
| Working voltage power | 250 V |
| Quality class | Quality class 1 |
| Mating cycles | 500 |
| IP rating | IP 20 |
| Current rating power | 30 A |
| Insertion force | 7 N |
| Extraction force | 5 N |
| Power resistance standard | 1 mOhm |
| Material power contact | Copper alloy |
|---|---|
| Plating power contact (mating area) | Gold over nickel |
| Plating power contact (termination area) | Gold over nickel |
| Standard mating cycles | IEC 60807-2 |
|---|---|
| Standard IP rating | IEC 60807-2 |
| Standard current rating | IEC 60807-2 |
| Standard insertion / extraction force | IEC 60807-2 |
| Standard dielectric voltage | IEC 60807-2 |
| Standard working voltage | IEC 60807-2 |
