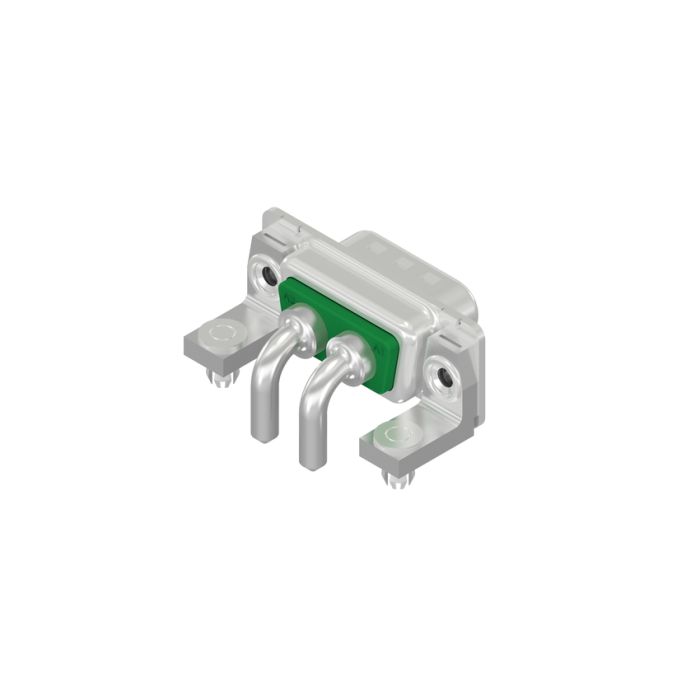

Part No: 302W2CPXX56N40X
Product Description
- D-SUB Combination Standard
- 2W2C [○/○]
- Plug
- Metal bracket
| Hardware options termination side |
Metal bracket |
| PCB fastening |
PCB-Clip |
| Hardware options mating side |
Threaded insert |
| Dielectric with standing voltage signal |
1000 V |
| Dielectric with standing voltage power |
1000 V |
| min. working temperature |
-55° C |
| max. working temperature |
+125° C |
| Working voltage power |
250 V |
| Quality class |
Quality class 1 |
| Mating cycles |
500 |
| Current rating power |
20 A |
| Insertion force |
14 N |
| Extraction force |
14 N |
| Power resistance standard |
1 mOhm |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Green |
| Shell material |
Steel |
| Shell plating |
Tin |
| Material power contact |
Copper alloy |
| Plating power contact (mating area) |
Gold over nickel |
| Plating power contact (termination area) |
Tin plated |
| Mounting option material |
Copper Alloy |
| Plating mounting option |
Nickel |
| Standard mating cycles |
IEC 60807-2 |
| Standard IP rating |
IEC 60807-2 |
| Standard current rating |
IEC 60807-2 |
| Standard insertion / extraction force |
IEC 60807-2 |
| Standard dielectric voltage |
IEC 60807-2 |
| Standard working voltage |
IEC 60807-2 |
