Part No: 13-002123

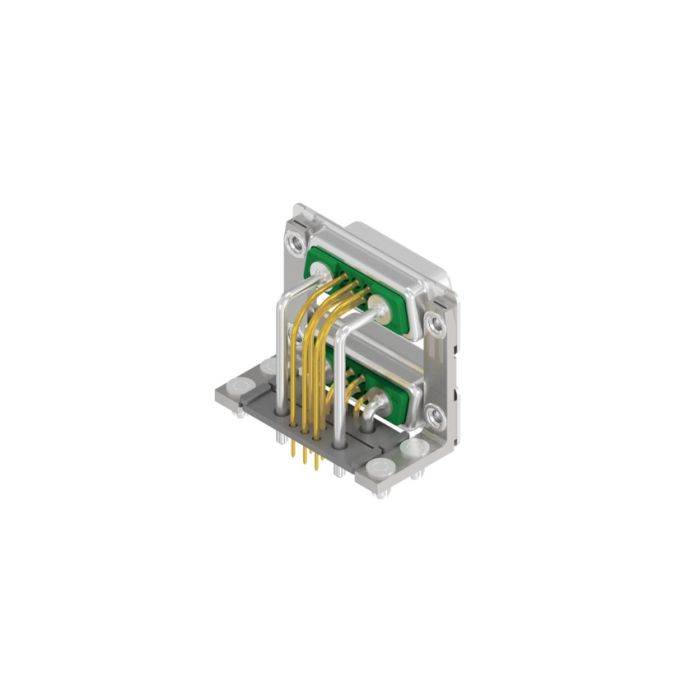

Product Description
- D-SUB Combination Dual Port
- 7W2/7W2
- Dual port socket upper / Socket bottom
- Solder pin angled
- Metal bracket
- UNC 4-40
| Port 1 |
Invertiert |
| Hardware options termination side |
Metal bracket |
| PCB fastening |
PCB-Clip 1,60mm |
| Hardware options mating side |
Threaded insert |
| Thread type |
UNC 4-40 |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Solder pin angled |
| Termination power contact |
Solder pin angled |
| Dielectric with standing voltage signal |
1000 V |
| Dielectric with standing voltage power |
1000 V |
| Working voltage power |
250 V |
| IP rating |
IP 20 |
| Current rating power |
20 A |
| min. working temperature |
-55° C |
| max. working temperature |
+125° C |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| Shell material |
Steel |
| Shell plating |
Tin |
