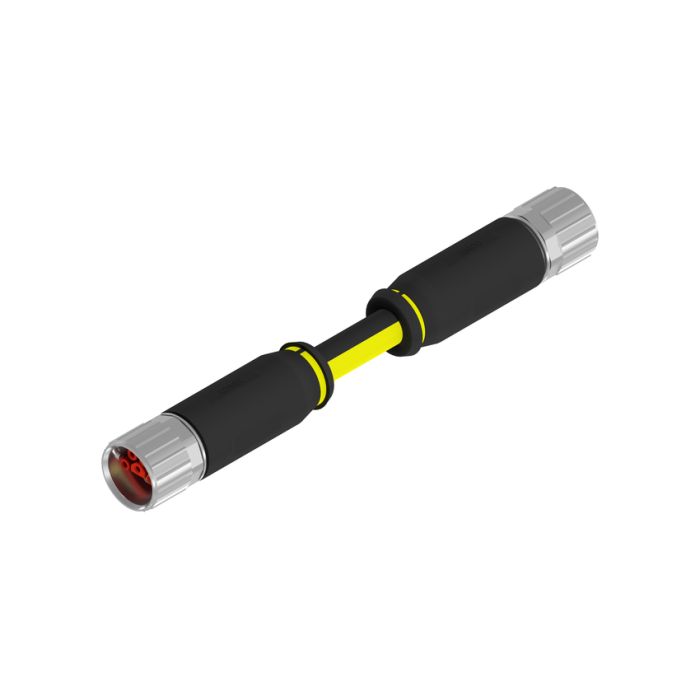

Part No: 58-25000
Product Description
- overmoulded
- double ended
- B23
- 1 m
- 600 V AC/ DC
In stock
| Product style | overmoulded |
|---|---|
| Design | double ended |
| Size A-side | B23 |
| Size B-side | B23 |
| Gender connector housing A-side | Female |
| Gender connector housing B-side | Female |
| Style B-side | axial |
| Gender power contacts A-side | Power= Female / Ethernet= Male |
| Gender mating face B-side | Power= Male / Ethernet= Female |
| No. of poles power contacts A-side | 4-pos.+PE |
| No. of poles power contacts B-side | 4-pos.+PE |
| No. of poles data contacts | 4-pos. |
| Hybrid Length cable/wire | 1 m |
| Rated voltage power contacts | 600 V AC/ DC |
|---|---|
| Rated voltage data contacts | 50 V AC/ DC |
| Current Rating power contacts | 26 A @ 40 °C (4 mm²) |
| Current rating data contacts | 4 A |
| Wire cross section power contacts | 4,0 mm² |
| Wire cross section data contacts | AWG22 |
| Degree of protection | IP67 |
| Performance data core | 100 MHz Cat5 |
