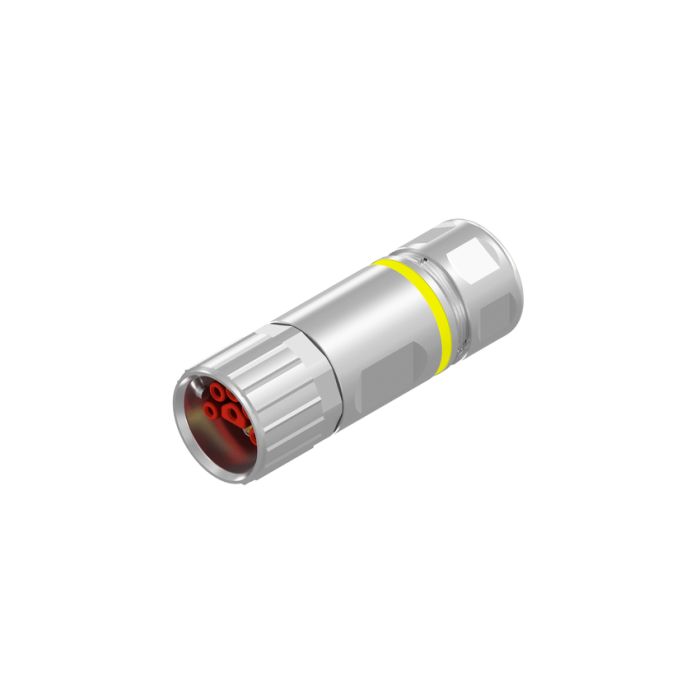

Part No: 58-20002
Product Description
- field attachable
- B23
- Female
- Power= Female / Ethernet= Male
In stock
| Product style | field attachable |
|---|---|
| Size A-side | B23 |
| Gender connector housing A-side | Female |
| Gender power contacts A-side | Power= Female / Ethernet= Male |
| No. of poles power contacts A-side | 3-pos.+PE+2-pos. |
| No. of poles data contacts | 4-pos. |
| Locking type | Bajonett |
| Cable diameter | 15-16 mm |
| Rated voltage power contacts | 600 V AC/ DC |
|---|---|
| Rated voltage data contacts | 50 V AC/ DC |
| Current Rating power contacts | 26 A (4 mm²) + 20 A (2,5 mm²) |
| Current rating data contacts | 4 A |
| Wire cross section power contacts | 2,5 mm² + 4,0 mm² |
| Wire cross section data contacts | AWG22 |
| Degree of protection | IP67 |
| Performance data core | 100 MHz Cat5 |
