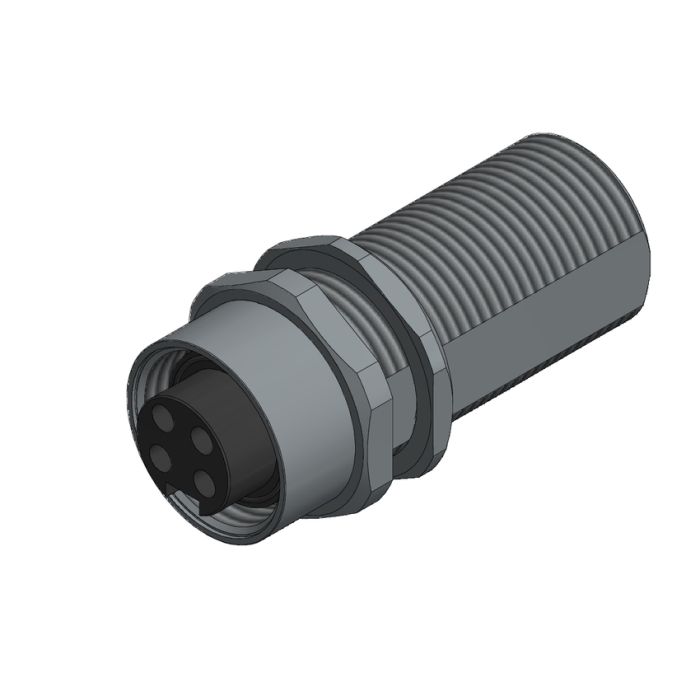

SAL-7/8-FK4-FS4-WD
Part No: 41-40129
Product Description
- Sockets
- 7/8
- 4- pos.
- Positioning
- Switch case lead-through
- Unshielded
| Style |
Sockets |
| Size A-side |
7/8 |
| Type A-side [ Female, Male] |
Female connector axial |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
7/8 |
| Pin configuration exit |
4-pos.+PE |
| Type B-side [Female, male] |
Male connector axial |
| Mounting options [e.g. front/back panel mounting etc.] |
Positioning |
| Locking type |
Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Switch case lead-through |
| Shielding |
Unshielded |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP68 in mated condition |
| Mating cycles |
>=100 |
| Insulator material |
TPU, UL94 |
| Housing material |
copper alloy |
| Housing color |
Nickel |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 60664-1 |
