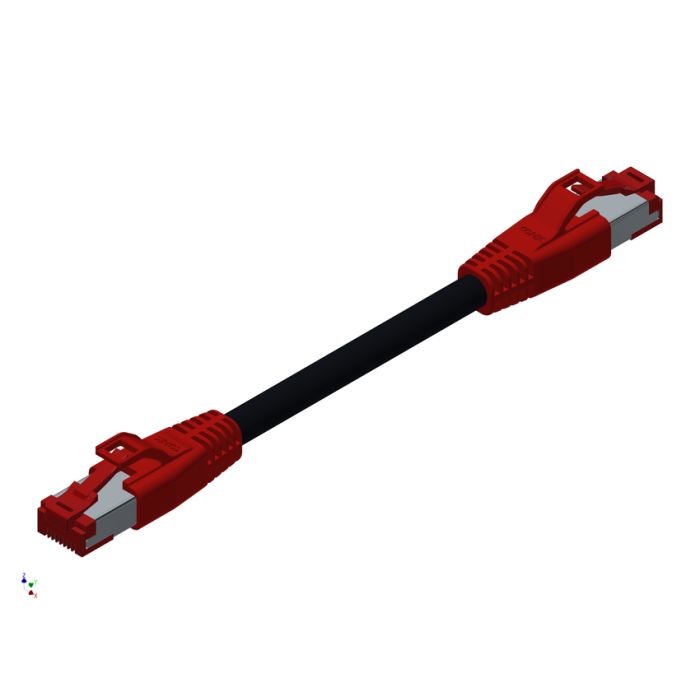

Part No: 17-60012
Product Description
- BUS Systems
- 8-pos.
- 1 m
- IDC
- RJ45
- Overmoulded Connectors
- Industrial Ethernet
- Double ended
- Shielded
- 4x2xAWG26/7
- TPU UL, halogenfree
| Style |
Overmoulded Connectors |
| Bus systems |
Industrial Ethernet |
| Design |
Double ended |
| Size A-side |
RJ45 |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
RJ45 |
| Connector type A-side |
RJ45 Plug Overmoulded |
| Connector type B-side |
RJ45 Stift umspritzt |
| Length cable/wire |
1 m |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
IDC |
| Shielding |
Shielded |
| Cable quality [e.g. PP, PVC, TPE etc.] |
TPU UL, halogenfree |
| Wire cross section |
4x2xAWG26/7 |
| Dielectric with standing voltage signal |
500 V AC/60sec. |
| IP rating |
IP 20 |
| min. working temperature |
-25° C |
| max. working temperature |
+60° C |
| Contact resistance standard |
10 mOhm |
| Insulator material |
PBT GF UL 94 V-0 |
| Shell material |
Copper Alloy |
| Shell plating |
Nickel |
| Housing material |
TPU angespritzt |
| Housing color |
Red |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
