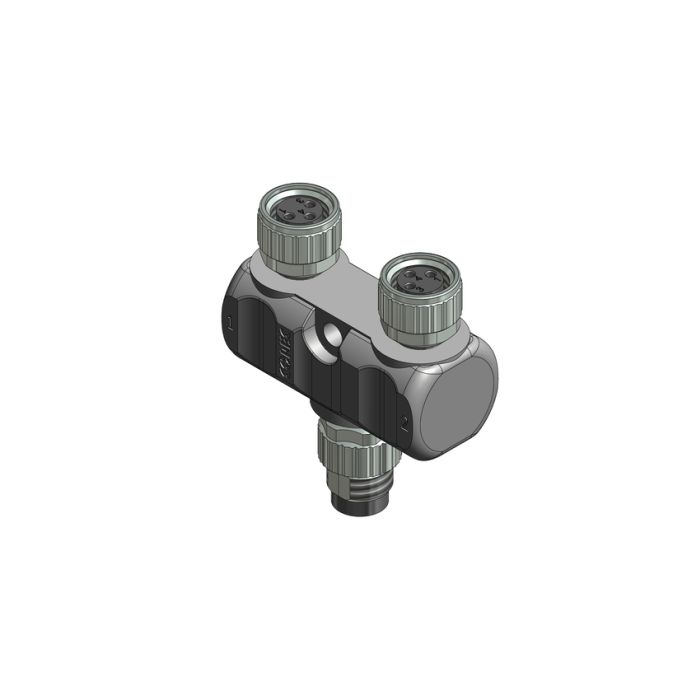

SAL-8-YS3-2YK3
Part No: 42-05102
Product Description
- M8x1
- A-coded
- Male connector axial
- Y-Splitter
- 3-pos.
- 1x Male connector M8x1 + 1x Female connector M8x1
| Size A-side |
M8x1 |
| Design |
Y-Splitter |
| Type A-side [ Female, Male] |
Male connector axial |
| Installation size exit |
1x Male connector M8x1 + 1x Female connector M8x1 |
| Pin configuration exit |
3-pos. |
| Configuration A-side |
axial |
| Configuration B-side |
axial |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP67 in mated condition |
| Sealing material |
FPM |
| Mating cycles |
>=100 |
| Recommended torque |
0,4 Nm |
| Insulation resistance |
>=100M Ohm |
| Insulator material |
PA, UL 94 |
| Coupling nut /-screw material |
Zinc die cast |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 61076-2-104 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 61076-2-104 |
| Standard temperature range |
IEC 60664-1 |
