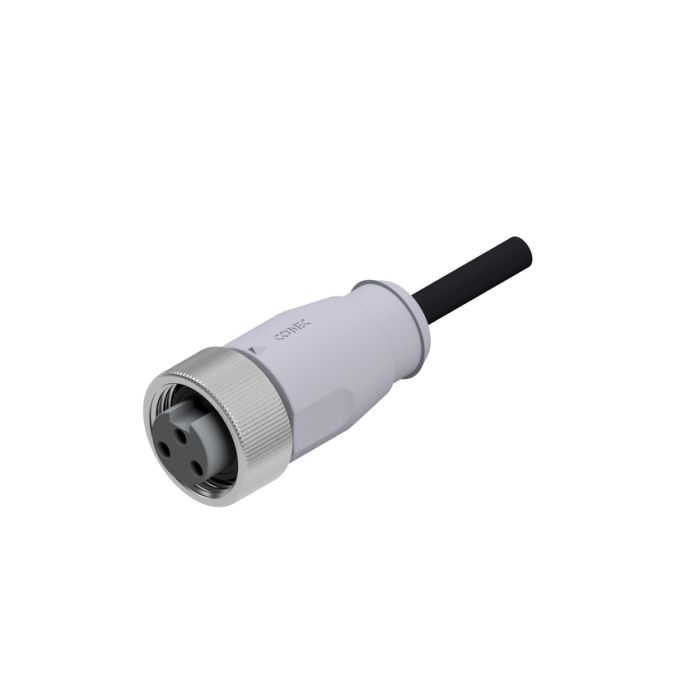

SAL-7/8-RK2PE-5/K0
Part No: 41-01006
Product Description
- 7/8
- Overmoulded Connectors
- Female connector axial
- single ended
- 2-pos.+PE
- Unshielded
- 5 m
- 0,75 mm²
- TPU halogeenfree high flexible
| Product type |
Connectors overmoulded |
| Style |
Overmoulded Connectors |
| Design |
single ended |
| Size A-side |
7/8 |
| Size/Number of positions |
2-pos.+PE |
| Type A-side [ Female, Male] |
Female connector axial |
| Length cable/wire |
5 m |
| IP range A-side |
IP67 |
| Locking type |
Screwable |
| Shielding |
Unshielded |
| Cable quality |
Li9Y11Y |
| Wire cross section |
0,75 mm² |
| min. working temperature |
-30° C [UL: -30° C] |
| max. working temperature |
+80° C [UL: +80° C] |
| Pollution degree |
3/2 |
| Working voltage signal |
300 V |
| IP rating |
IP67 |
| Current rating signal |
10A at +40°C |
| Sealing material |
FPM |
| Cable quality [e.g. PP, PVC, TPE etc.] |
TPU halogeenfree high flexible |
| Mating cycles |
>=100 |
| Insulation resistance |
>=100M Ohm |
| Cable color |
Black |
| Insulator material |
TPU, UL94 |
| Insulator color |
Black |
| Housing material |
TPU, UL94 |
| Housing color |
Grey |
| Coupling nut /-screw material |
Copper Alloy |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 60512-3 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 60664-1 |
| Standard temperature range |
IEC 60664-1 |
