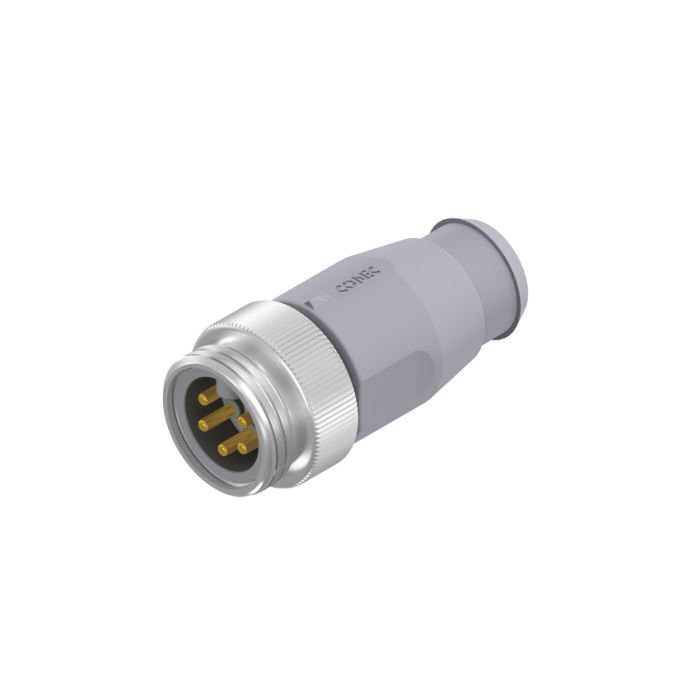

SAL-DN-7/8-RSA5.3
Part No: 41-01304
Product Description
- BUS Systems
- 7/8
- DeviceNet
- 5- pos.
| Size A-side |
7/8 |
| Locking type |
Screwable |
| Bus systems |
DeviceNet |
| Configuration A-side |
axial |
| min. working temperature |
-30° C |
| max. working temperature |
+80° C |
| Pollution degree |
3/2 |
| IP rating |
IP67 |
| Sealing material |
FPM |
| Mating cycles |
>=100 |
| Insulation resistance |
>=100M Ohm |
| Insulator material |
TPU, UL94 |
| Insulator color |
Black |
| Housing material |
TPU, UL94 |
| Housing color |
Grey |
| Coupling nut /-screw material |
Copper Alloy |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 60512-3 |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
| Standard rated voltage |
IEC 60664-1 |
| Standard temperature range |
IEC 60664-1 |
