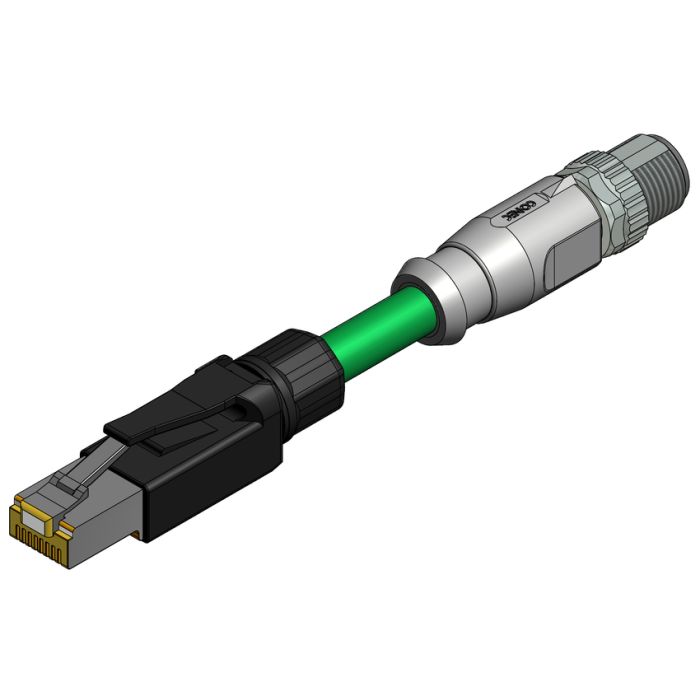

SAL-45S-SS8.31-12S-RS8.23-
Part No: 43-17021
Product Description
- BUS Systems
- 8-pos.
- 3 m
- RJ45
- A-coded
- Overmoulded Connectors
- Male connector axial
- Industrial Ethernet
- Double ended
- Shielded
- 4x2xAWG24
- TPU shielded SFTP
| Design |
Double ended |
| Size A-side |
RJ45 |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
M12x1 |
| Type A-side [ Female, Male] |
Male connector axial |
| Type B-side [Female, male] |
Male connector axial |
| Length cable/wire |
3 m |
| IP range A-side |
IP20 |
| IP range B-side |
IP67 |
| Locking type |
Screwable |
| Style |
Overmoulded Connectors |
| Bus systems |
Industrial Ethernet |
| Shielding |
Shielded |
| Wire cross section |
4x2xAWG24 |
| min. working temperature |
-20° C |
| max. working temperature |
+60° C |
| Pollution degree |
3/2 |
| Cable quality [e.g. PP, PVC, TPE etc.] |
TPU shielded SFTP |
| Mating cycles |
>=100 |
| Recommended torque |
0,6 Nm |
| Insulation resistance |
>=100M Ohm |
| Cable color |
Green (RAL6018) |
| Insulator material |
PA, UL 94 |
| Housing material |
TPU, UL94 |
| Coupling nut /-screw material |
Zinc die cast |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
