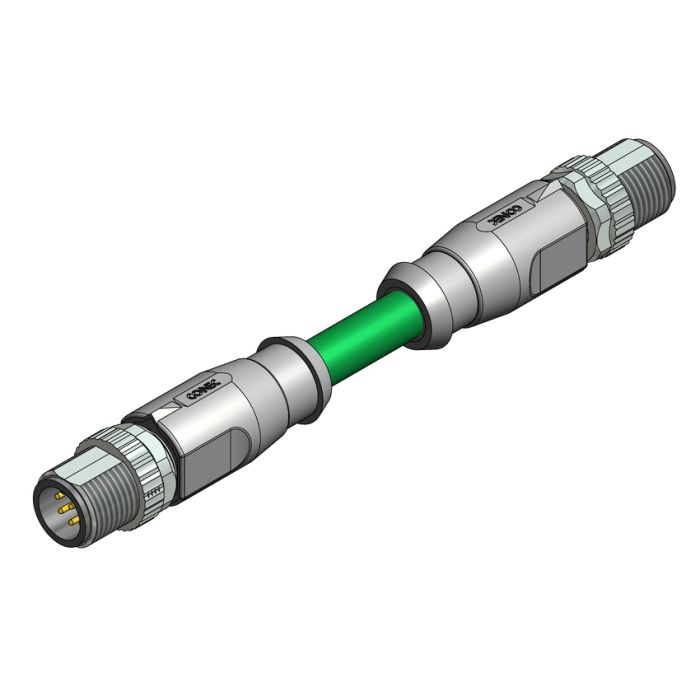

SAL-12S-RS8.23-RS8.23-0,6/GAF
Part No: 43-17003
Product Description
- A-coded
- Overmoulded Connectors
- Male connector axial
- Industrial Ethernet
- Double ended
- Shielded
- 4x2xAWG24
| Design |
Double ended |
| Type A-side [ Female, Male] |
Male connector axial |
| Style |
Overmoulded Connectors |
| Bus systems |
Industrial Ethernet |
| Shielding |
Shielded |
| Wire cross section |
4x2xAWG24 |
| min. working temperature |
-20° C |
| max. working temperature |
+60° C |
| Pollution degree |
3/2 |
| Mating cycles |
>=100 |
| Recommended torque |
0,6 Nm |
| Insulation resistance |
>=100M Ohm |
| Insulator material |
PA, UL 94 |
| Coupling nut /-screw material |
Zinc die cast |
| Coupling nut /-screw plating |
Nickel |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
