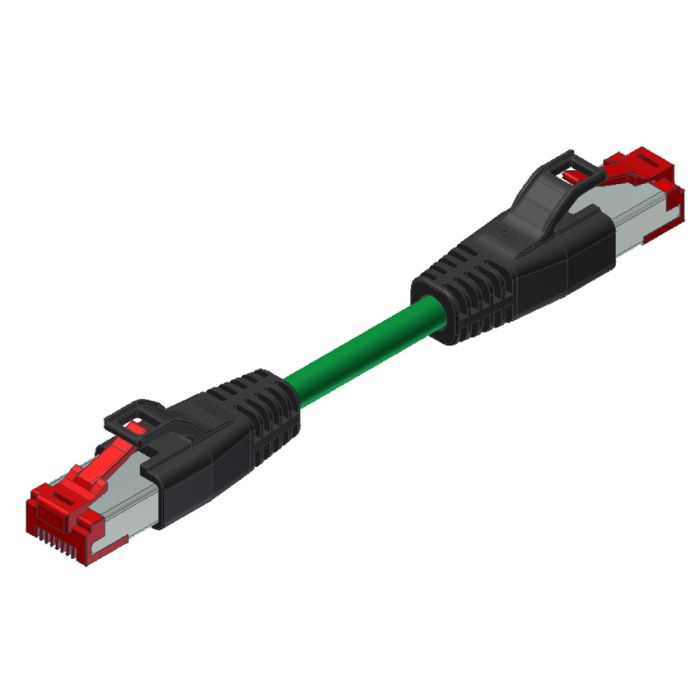

Part No: 43-18910
Product Description
- Overmoulded Connectors
- Male connector axial
- Double ended
- Shielded
- AWG26
| Style |
Overmoulded Connectors |
| Design |
Double ended |
| Size B-side [e.g. M8, M12, 7/8" etc.] |
RJ45 |
| Type A-side [ Female, Male] |
Male connector axial |
| Type B-side [Female, male] |
Male connector axial |
| IP range A-side |
IP20 |
| Shielding |
Shielded |
| Wire cross section |
AWG26 |
| min. working temperature |
-25° C |
| max. working temperature |
+60° C |
| Pollution degree |
3/2 |
| IP rating |
IP 20 |
| Mating cycles |
>=100 |
| Insulator material |
PC UL 94 V-2 |
| Signal contact material |
Copper alloy |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard mating cycles |
IEC 60512-9a |
| Standard IP rating |
IEC 60529 |
| Standard insulation resistance |
IEC 60512 |
| Standard pollution degree |
IEC 60664-1 |
