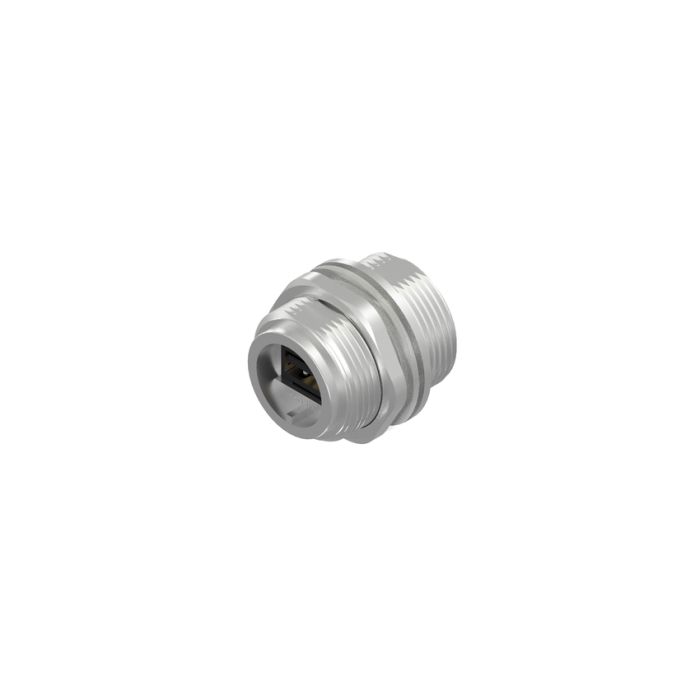

Part No: 17-200321
Product Description
- IP67 USB
- Panel mounted receptacle
€11.18
| Product type |
IP67 USB |
| Style |
Panel mounted receptacle |
| Performance |
USB 2.0 Type A ip to 480 MBit/s |
| Locking type |
M28 Thread |
| Mounting options [e.g. front/back panel mounting etc.] |
Front- or Back panel mounting |
| Mounting style |
Through hole |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Panel mounted receptacle |
| Shielding |
Shielded |
| Dielectric with standing voltage signal |
1000 V DC 60sec. |
| Working voltage signal |
30 V |
| IP rating |
IP67 |
| Current rating signal |
1,5 A bei 25°C |
| min. working temperature |
-40° C |
| max. working temperature |
+85° C |
| Contact resistance standard |
30 mOhm |
| Sealing material |
Silikon |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Shell material |
Copper Alloy |
| Shell plating |
Nickel |
| Plating of housing |
Nickel |
| Signal contact material |
Phosphor bronze |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
USB 2.0 |
| Standard dielectric voltage |
USB 2.0 |
| Standard working voltage |
USB 2.0 |
