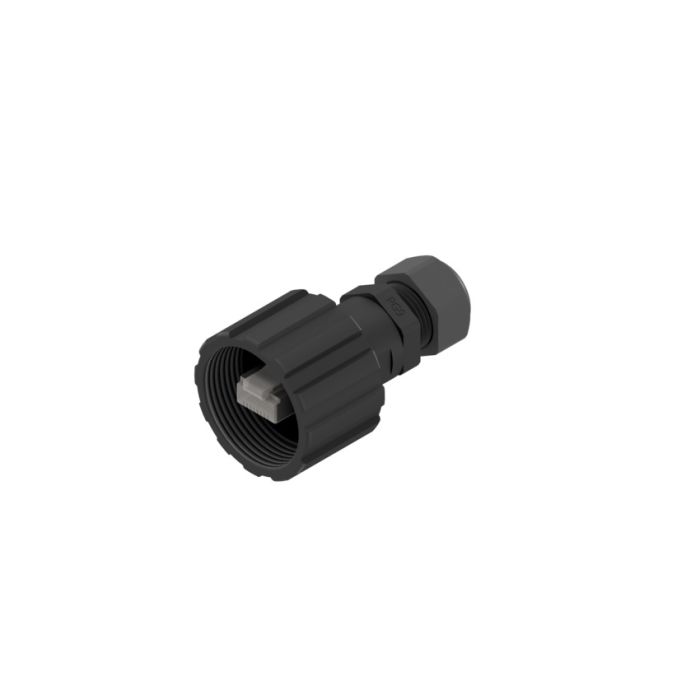

Part No: 17-100464
Product Description
- IP67 RJ45
- Cable connector
- Plug
- RJ45 Cat. 5e
€2.45
| Product type |
IP67 RJ45 |
| Style |
Cable connector |
| Performance |
RJ45 Cat. 5e |
| Contact type |
Plug |
| Locking type |
M28 Thread |
| Special version |
IP 20 strain relief |
| Termination signal [e.g. clamp, crimp, solder, SMT] |
IDC |
| Shielding |
Shielded |
| Dielectric with standing voltage signal |
1000 V DC 60sec. |
| Working voltage signal |
100 V DC |
| Current rating signal |
1,2 A |
| Housing material |
PBT GF UL 94 V-0 |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Shell material |
Copper Alloy |
| Shell plating |
Nickel |
| Housing color |
Black |
| Coupling ring material |
PBT GF UL 94 V-0 |
| Plating of coupling ring |
Black |
| Cable fitting |
PBT GF UL 94 V-0 |
| Signal contact material |
Phosphor bronze |
| Plating signal contact (mating area) |
Gold over nickel |
| Standard current rating |
IEC 60603-7 |
| Standard dielectric voltage |
IEC 60603-7 |
| Standard working voltage |
IEC 60603-7 |
