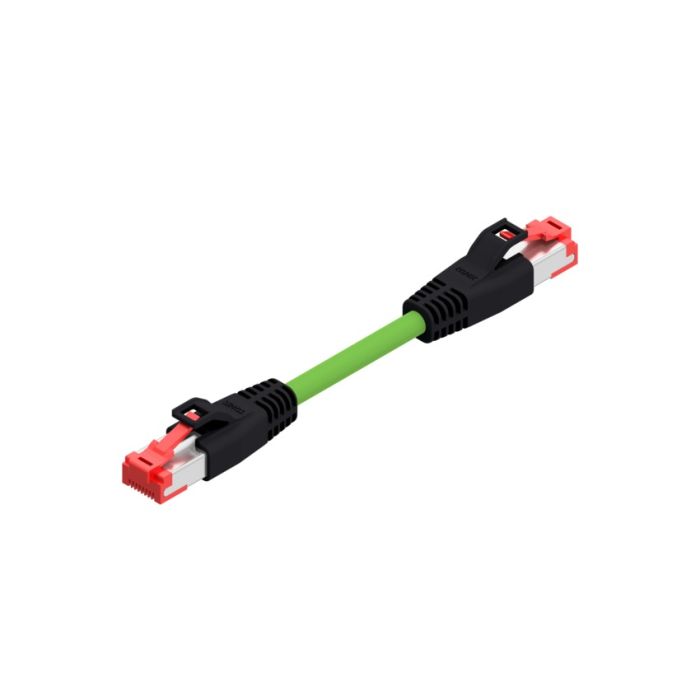

Part No: 17-140013
Product Description
- BUS Systems
- 4- pos.
- 1 m
- IDC
- RJ45
- Overmoulded Connectors
- Industrial Ethernet
- Double ended
- Shielded
- 4xAWG24
- TPU UL, halogenfree
In stock
€11.31
| Product type | BUS Systems |
|---|---|
| Style | Overmoulded Connectors |
| Bus systems | Industrial Ethernet |
| Design | Double ended |
| Size/Number of positions | 4- pos. |
| Size A-side | RJ45 |
| Size B-side [e.g. M8, M12, 7/8" etc.] | RJ45 |
| Connector type A-side | RJ45 Plug Overmoulded |
| Connector type B-side | RJ45 Stift umspritzt |
| Length cable/wire | 1 m |
| Termination signal [e.g. clamp, crimp, solder, SMT] | IDC |
| Shielding | Shielded |
|---|---|
| Cable quality [e.g. PP, PVC, TPE etc.] | TPU UL, halogenfree |
| Wire cross section | 4xAWG24 |
| Working voltage signal | 125 V DC |
| IP rating | IP 20 |
| Current rating signal | 1,2 A |
| min. working temperature | -20° C |
| max. working temperature | +60° C |
| Insulator material | PBT GF UL 94 V-0 |
|---|---|
| Housing material | TPU angespritzt |
| Housing color | Black |
| Signal contact material | Copper alloy |
| Plating signal contact (mating area) | Gold over nickel |
