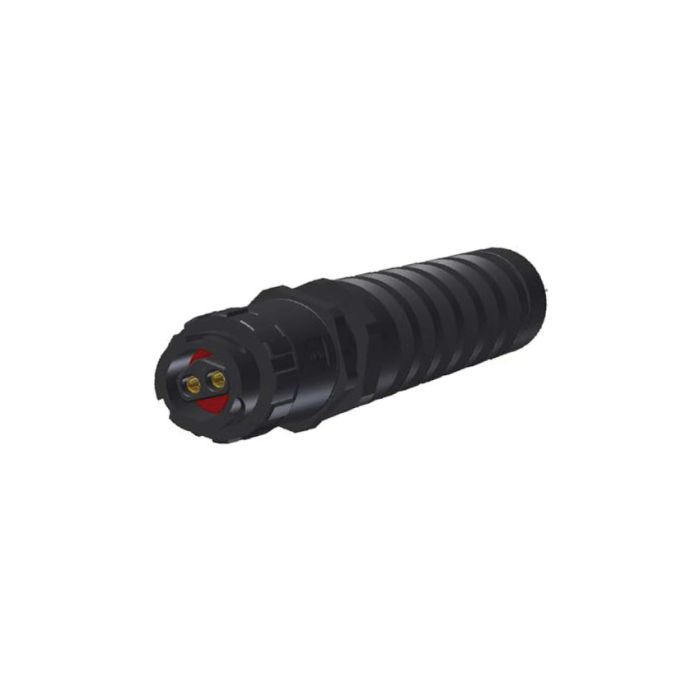

Part No: 17-400123
Product Description
- IP67 Power Bayonet
- Cable connector
- Socket
- 2-pos.
- 13 mm - 18 mm
€5.89
| Product type |
IP67 Power Bayonet |
| Contact type |
Socket |
| Size/Number of positions |
2-pos. |
| Style |
Cable connector |
| Locking type |
Bayonet |
| Special version |
IP67/IP67 |
| Mounting options [e.g. front/back panel mounting etc.] |
cable connector |
| Mounting style |
Through hole |
| Termination power contact |
Crimp straight |
| Cable outer diameter |
13 mm - 18 mm |
| Cable quality [e.g. PP, PVC, TPE etc.] |
PP [ Food & Beverage] |
| IP rating |
IP67 in connected condition |
| min. working temperature |
-40° C |
| max. working temperature |
+100° C |
| Sealing material |
Silikon |
| Working voltage power |
48 V AC/DC |
| Current rating power |
30 A |
| Power contact cross section |
AWG 10- 12 |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| Power resistance standard |
1 mOhm |
| Housing material |
PA GF UL 94 V-0 |
| Insulator material |
PA GF, UL 94 V-0 |
| Insulator color |
Black |
| Plating of housing |
Nickel |
| Housing color |
Black |
| Coupling ring material |
PA GF UL 94 V-0 |
| Plating of coupling ring |
Black |
| Cable fitting |
PA GF UL 94 V-0 |
| Material power contact |
Copper alloy |
| Plating power contact (mating area) |
Gold over nickel |
| Plating power contact (termination area) |
Tin plated |
| Standard current rating |
IEC 60603-7 |
| Standard dielectric voltage |
IEC 60603-7 |
| Standard working voltage |
IEC 60603-7 |
