CONEC M12 Connectors with bayonet quick locking

… convenient and reliable

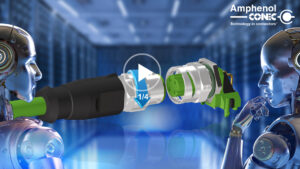

The CONEC connector series with bayonet quick locking system allows safe and quick locking even in areas that are difficult to reach and/or not visible. With the “three-point” bayonet locking it is possible to lock the connection by hand with a 90 ° turn. You get a direct tactile and acoustic feedback as soon as the connector is locked.

The connectors are designed according to the draft standard IEC CD 61076-2-011/Ed1.

In order to meet the mechanical requirements with regard to tightness to dust and liquid media in industrial environments, no additional tools are required for the new M12 bayonet version by CONEC. When locked, the requirements of protection degrees IP65, IP67 and IP69K are met. In addition, the new series is shock and vibration resistant according to the railway requirements IEC 61373:2010, class 1B. The CONEC bayonet locking variant thus offers simplified handling and at the same time secure transmission of signals and data to the user.

The coupling sockets with solder pin termination are also equipped with an internal thread in the mating area, thus ensuring 100% backwards compatibility with standard M12 connectors. This means that new systems can be equipped with the M12 bayonet on the device side without any concerns.
The M12 bayonet series is presented as standard in the codings A and D. The PCB sockets are available in axial and angled form for back panel mounting and a panel thickness of 2.2 mm.

Werkzeuglose, sichere, schnelle und taktile Drei-Punkt-Bajonettverriegelung

Product details:

Benefits:

  • Tool-free, safe, fast and tactile three-point bayonet locking
  • No mechanical connection between insulating body and socket housing
  • 360° shielded
  • Degree of protection (in mated condituion: IP65, IP67 und IP69K
  • Shock and vibration resistant according to railway requirements IEC 61373:2010-10, class 1B
  • RoHS compliant
  • Various standardised installation height



Fields of application:

  • Automation technology
  • Drive technology
  • Housing and device production
  • Maschine manufacturing
  • Industrial interfaces
  • Communications
  • Security and surveillance systems
  • Agricultural and construction machines
  • Transport industry



Part no. overview CONEC Connectors M12 with bayonet quick locking

Part No.GenderNo. of polesCodingDescription
43-23061Male-Male4DPatch cord 0,3 m
43-23062Male-Male4DPatch cord 0,6 m
43-23063Male-Male4DPatch cord 1,5 m
43-23064Male-Male4DPatch cord 3,0 m
43-23065Male5AOpen end cable 2,0 m
43-23066Male5AOpen end cable 3,0 m
43-23067Male5AOpen end cable 5,0 m
43-23068Male5AOpen end cable 10,0 m
Einbauflansche
43-03920Female4DBack panel mounting, installation heigth 9 mm, angled
43-03921Female4DBack panel mounting, installation height 5.5 mm, axial
43-03922Female5ABack panel mounting, installation heigth 9 mm, angled
43-03923Female5ABack panel mounting, installation heigth 10 mm, axial
