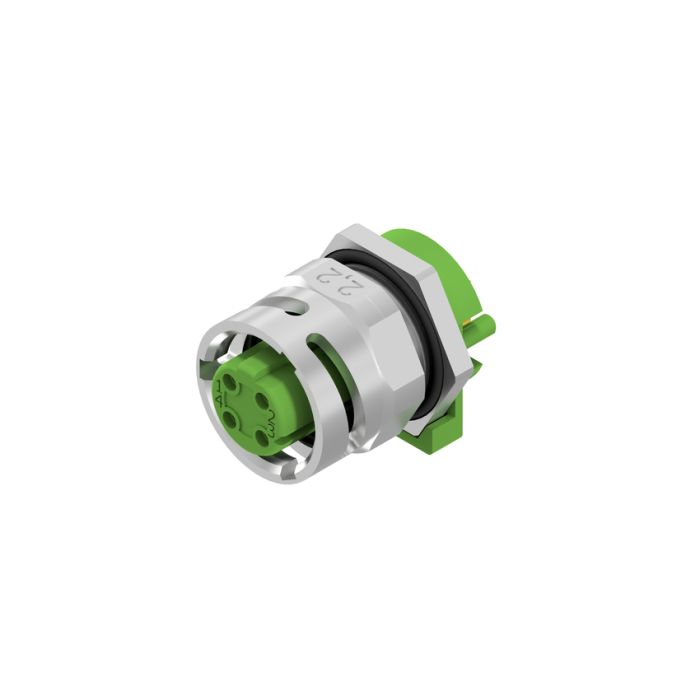

SAL-MB12D-FKH4-X5,5 Part No: 43-03921
Product Description
- Series M12 Bayonet locking
- Sockets
- Industrial Ethernet
- M12x1
- 4- pos.
- 5,5 mm
- Back panel mounting, panel thickness 2,2 mm
- Solder pin straight
- D-coded
- Shielded
- Female connector axial
In stock
| Style | Sockets |
|---|---|
| Bus systems | Industrial Ethernet |
| Size A-side | M12x1 |
| Design | Sockets |
| Type A-side [ Female, Male] | Female connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting, panel thickness 2,2 mm |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Installation height | 5,5 mm |
| Screw connection [e.g. PG9, M16 etc.] | M12x1 |
| Locking type | M12 Bayonet/screwable |
| IP range A-side | IP65/IP67/IP69K |
| min. working temperature | -40° C |
|---|---|
| max. working temperature | +85° C |
| Shielding | Shielded |
