Part No: 16-002183

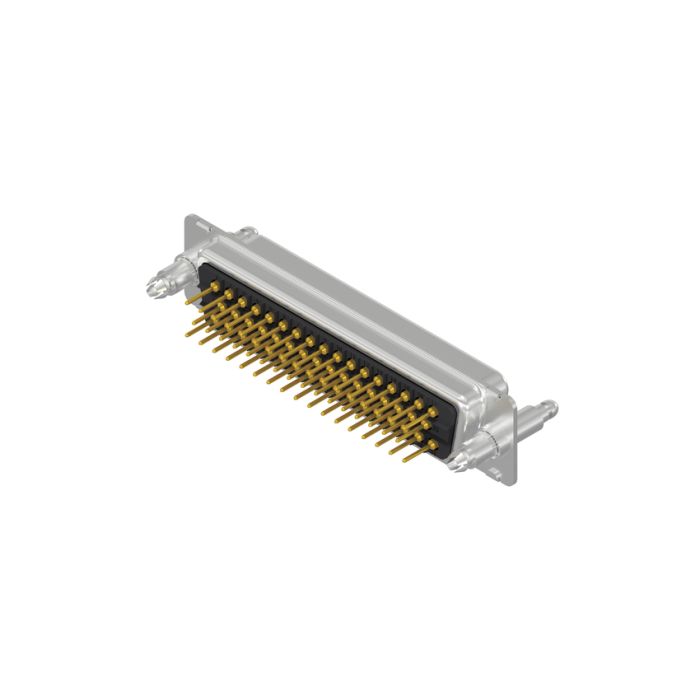

Product Description

  • D-SUB Standard
  • 50-pos.
  • Socket
  • Solder pin straight
  • Threaded rear spacer
  • Quality class 3
In stock
€5.74
Product type D-SUB Standard
Contact type Socket
Size/Number of positions 50-pos.
Termination signal [e.g. clamp, crimp, solder, SMT] Solder pin straight
PCB fastening PCB-Clip
Hardware options mating side SnapLock
Hardware options termination side Threaded rear spacer
Dielectric with standing voltage signal 1000 V
Working voltage signal 125 V
Quality class Quality class 3
Mating cycles 50
IP rating IP 20
Current rating signal 7,5 A
Insertion force <167 N
Extraction force <167 N
Contact resistance standard 10 mOhm
min. working temperature -55° C
max. working temperature +125° C
Insulator material PBT GF UL 94 V-0
Insulator color Black
Shell material Steel
Shell plating Tin
Signal contact material Copper alloy
Plating signal contact (termination area) Gold over nickel
Plating signal contact (mating area) Gold over nickel
Mounting option material Copper Alloy
Plating mounting option Tin
Standard mating cycles IEC 60807-2
Standard insertion / extraction force IEC 60807-2
Standard dielectric voltage IEC 60807-2
Standard working voltage IEC 664-1
