Part No: 13-001713

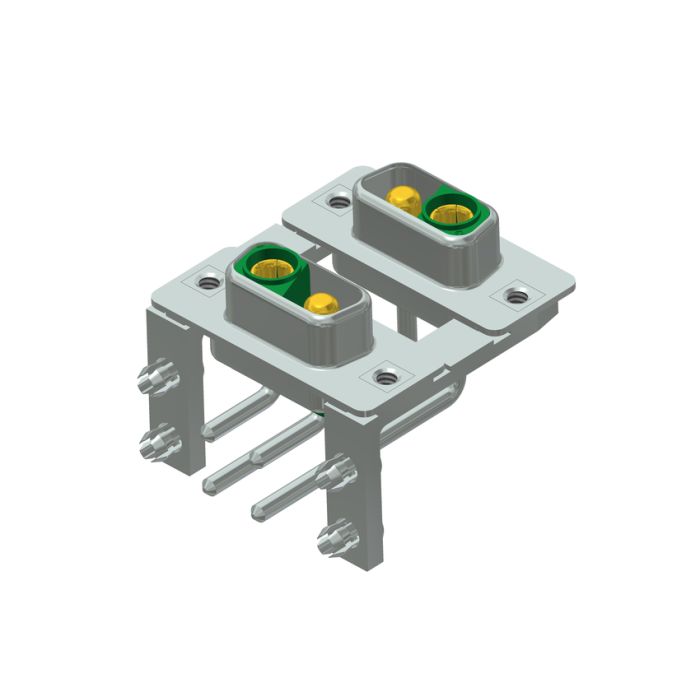

Product Description
- D-SUB Combination Dual Port
- 2W2C/2W2C
- Dual port socket upper / Socket bottom
- Metal bracket
- UNC 4-40
| Termination power contact |
Solder pin angled |
| Hardware options termination side |
Metal bracket |
| PCB fastening |
PCB-Clip |
| Hardware options mating side |
Threaded insert |
| Thread type |
UNC 4-40 |
| Port 1 |
Invertiert |
| Dielectric with standing voltage power |
1000 V |
| min. working temperature |
-55° C |
| Working voltage power |
250 V |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| IP rating |
IP 20 |
| Insertion force |
14 N |
| Extraction force |
14 N |
| Power resistance standard |
1 mOhm |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Green |
| Shell material |
Steel |
| Shell plating |
Tin |
| Material power contact |
Copper alloy |
| Plating power contact (mating area) |
Gold over nickel |
| Plating power contact (termination area) |
Tin plated |
| Mounting option material |
Copper Alloy |
| Plating mounting option |
Nickel |
| Standard mating cycles |
IEC 60807-2 |
| Standard IP rating |
IEC 60807-2 |
| Standard current rating |
IEC 60807-2 |
| Standard insertion / extraction force |
IEC 60807-2 |
| Standard dielectric voltage |
IEC 60807-2 |
| Standard working voltage |
IEC 60807-2 |
