Part No: 15-005373

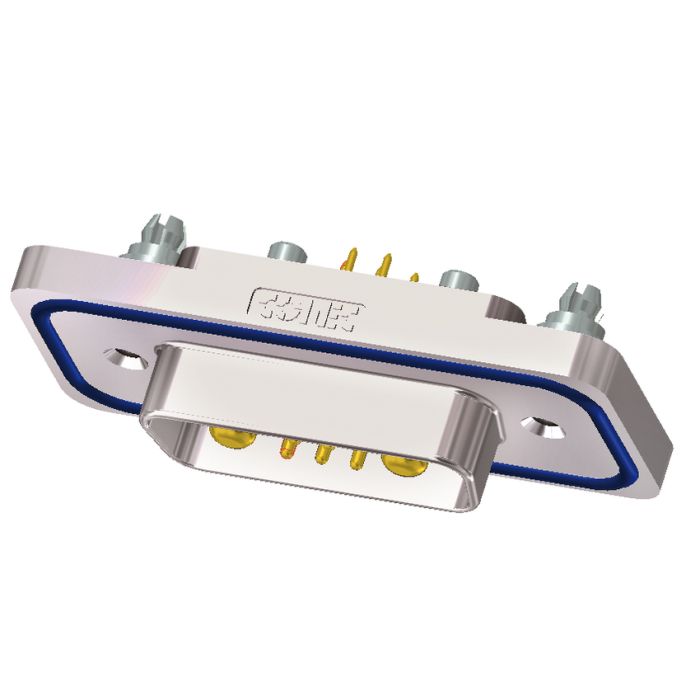

Product Description
- IP67 Combination D-SUB
- 21W1 [•••••••○•••••••]
- Female Connector
| Termination signal [e.g. clamp, crimp, solder, SMT] |
Solder pin straight |
| Termination power contact |
Solder pin straight |
| PCB fastening |
Threaded rear spacer with clip |
| Hardware options mating side |
Threaded insert |
| Thread type |
UNC 4-40 |
| Mounting style |
Straight |
| Dielectric with standing voltage signal |
1000 V |
| Dielectric with standing voltage power |
1000 V |
| min. working temperature |
-25° C |
| max. working temperature |
+105° C |
| Working voltage power |
250 V |
| Quality class |
Quality class 3 |
| Mating cycles |
50 |
| Current rating power |
20 A |
| Insertion force |
107 N |
| Extraction force |
52 N |
| Power resistance standard |
2,7 mOhm |
| Insulator material |
PBT GF UL 94 V-0 |
| Insulator color |
Black |
| Shell material |
Brass |
| Shell plating |
Tin |
| Signal contact material |
Copper alloy |
| Plating signal contact (termination area) |
Gold over nickel |
| Plating signal contact (mating area) |
Gold over nickel |
| Material power contact |
Copper alloy |
| Plating power contact (mating area) |
Gold over nickel |
| Mounting option material |
Stainless Steel |
| Standard mating cycles |
DIN41652 |
| Standard insertion / extraction force |
DIN41652 |
| Standard dielectric voltage |
IEC664-1 |
| Standard working voltage |
DIN41652 |
